Aktivní chladič AMD SoC

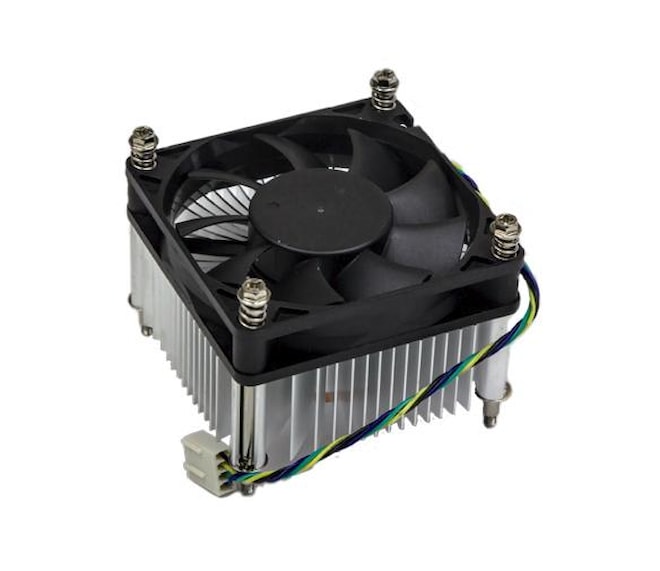

Active Heatsink Kit for Mini-ITX Motherboard D3713 / D3723

• Designed for the AMD Ryzen™ Embedded R1000/R2300/R2500/V1000 processor series up to 54 W TDP
• Copper/aluminium with fan
• Max. 54 W TDP
• Spring-loaded mounting screws for specified downforce
• Weight: ~270 g (cooler) + 21 g (backplate)

TECHNICAL INFORMATION

• FAN DIMENSIONS: 70 x 70 x 15 mm
• OPERATING VOLTAGE: 12 V; PWM
• POWER CONSUMPTION:
  • max. 0.4 A/4.8 W @ 100 % PWM
  • 5.100 rpm +/- 10 % @ 100 % PWM
  • 600 rpm +/- 400 rpm @ 0-20 % PWM
  • Max. 42 dB(A) @ 100 % PWM
  • Two ball bearing, fan cable = 75 mm +/- 10 mm
• MTBF: 50.000 hrs @ 40 °C
• OPERATING TEMPERATURE: -10 °C...70 °C
• RECOMMENDED MOUNTING SCREW TORQUE: max. 0.8 Nm
• Metal backplate, provides 4 mounting threads for heatsink
• BACKPLATE MOUNTING HOLES: M3; hole spacing = 61.5 mm x 61.5 mm
• SUPPORTED MAINBOARDS: D3713-R/-V, D3723-R
