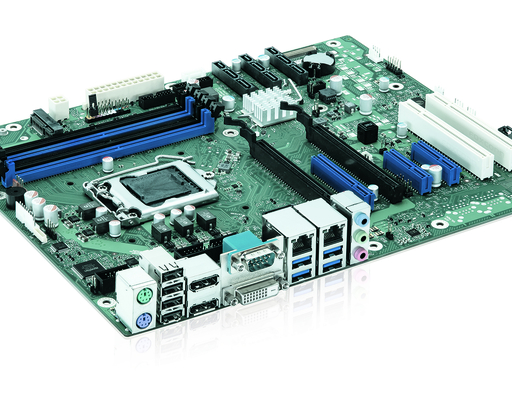

D3446-S2 ATX Kontron
kat. č.: S26361-F5110-V149
Popis produktu
Paměť:
- DDR4 2133 SDRAM (UDIMM)
- DDR4 2400 SDRAM (UDIMM)
- ECC / Non-ECC
Vlastnosti:
- Intel® iAMT 11.0
- Onboard support for Mini-PCI Express and mSATA
- Onboard SATA-III incl. RAIS support
- Intel® HD Graphics; PCI Express Gen3
- Multichannel Audio & Dual Intel GbE LAN onboard USB 2.0/3.0 and
- USB 2.0 socket (stick) onboard
- Trusted Platform Module V2.0 (Infineon) onboard
- BIOS-POST/-Boot & OS – HW Watchdog onboard
Parametry
| Market: | Průmysl |
| Form Factor: | ATX |
| Power Input: | ATX- 24 Pin or ATX- 20 Pin + 4 Pin (12V) Power Connector required Support for Soft-Off Power Supplies 12V and 3.3V Supply Voltage on PCIe Slots 3.3V Auxiliary Supply Voltage on PCIe Slots (Wake-Up Function) On board CPU Voltage Regulator, 5V / 2A Aux |
| Processor: | Intel® Xeon® E3-1200 V5 processor series, Intel® Xeon® E3-1200 V6 processor series, Intel® Core™ i7 / i5 / i3 – (6th+7th generation) processor series, Intel® Pentium® / Intel® Celeron® – (6th+7th generation) processor series, Socket LGA1151, max. 80 |
| LAN/USB/COM: | Intel i219LM & i210AT with 10/100/1000 MBit/s, iAMT 11 Support, Wake-on-LAN (WoL) by interesting Packets, Link Status Change and Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support |
