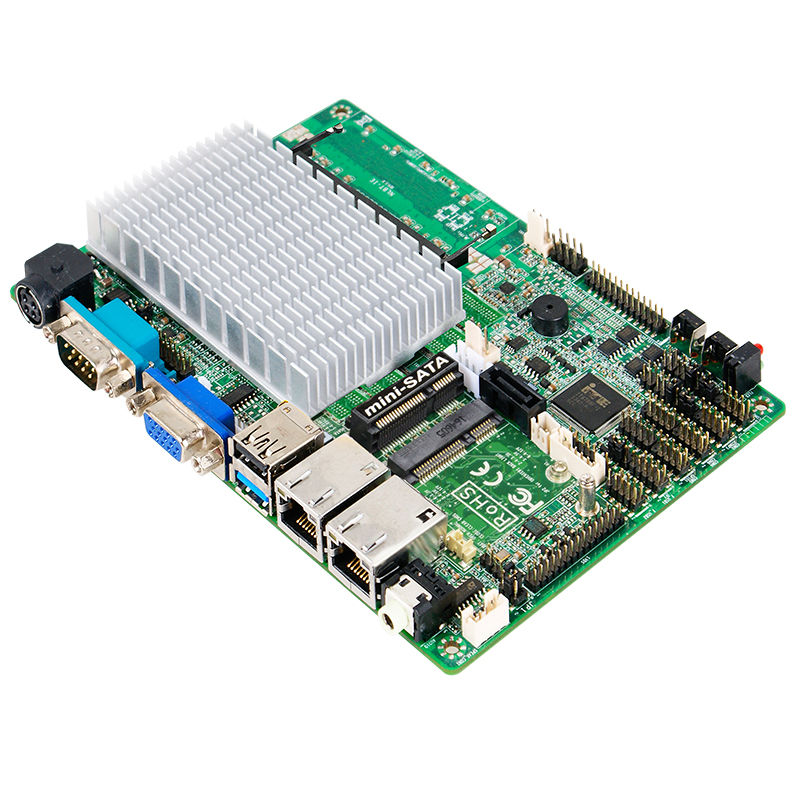

NLBT-IE1900
kat. č.: NLBT-IE1900
NLBT-IE1900
On board INTEL® BayTrail J1900 2.0 GHz Quad Cores CPU
1x SO-DIMM slot Support DDR3L 1333 Max. capacity up to 8GB
Operating temp.: 0~60°C
Výrobce
Odkazy
Dostupnost:
na dotaz
Poptávka
Popis produktu
Procesor:
- On board INTEL® BayTrai J1900 2.0 GHz Quad Cores CPU
- 2 Phase CPU Power Support
Paměť:
- 1x SO-DIMM slot Support DDR3L 1333, Max. capacity of system memory up to 8GB
Vlastnosti:
- 5x USB2.0/1.1, 1x USB3.0, 2x RJ45, 6x COM
- 1x VGA (max. res.: 1920x1200@60Hz), 1x HDMI (max. res.: 1920x1200@60Hz), 1x Dual Channel LVDS (max. res.: 1920x1200@60Hz)
- Support 2x PCI Express Gigabit LAN
- Support 24-bit Dual channel
- Onboard 1x MiniPCI-E connector (Half size), Onboard 1x mSATA connector (Full size)
- Support power onboard (wide voltage input: 9~24V)
Parametry
| Market: | Industrial |
| Power Input: | 9-24V DC-in |
| Processor: | On board INTEL® BayTrai J1900 2.0 GHz Quad Cores CPU |
| PCIe/mPCIe/PCI: | 2x PCI Express Gigabit LAN, 1x MiniPCI-E connector (Half size) |
| LAN/USB/COM: | 5x USB2.0/1.1, 1x USB3.0, 2x RJ45, 6x COM |
| Video input: | 1x VGA (max. res.: 1920x1200@60Hz), 1x HDMI (max. res.: 1920x1200@60Hz), 1x Dual Channel LVDS (max. res.: 1920x1200@60Hz) |
| Rozhraní: | mSATA connector (Full size) |
| Rozměry: | 165 x 115 mm |
| Provozní teplota: | 0 ~ +60°C |
| Typ paměti: | 1x DDR3L 1333, Max. capacity of system memory up to 8GB |
| DDR: | SO-DIMM |
