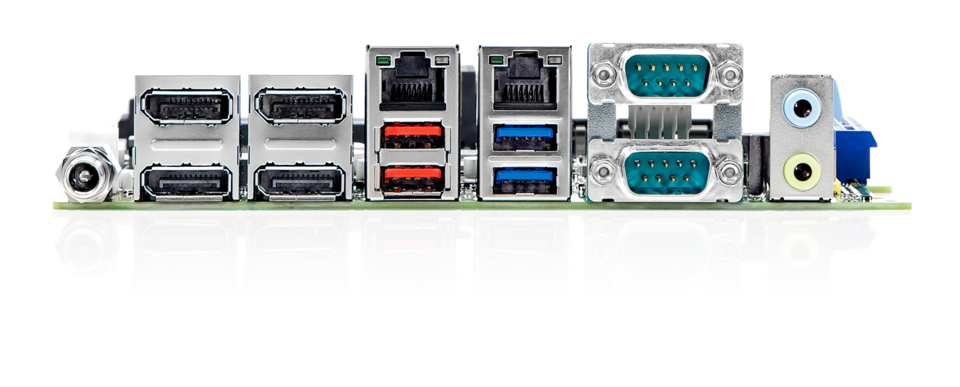

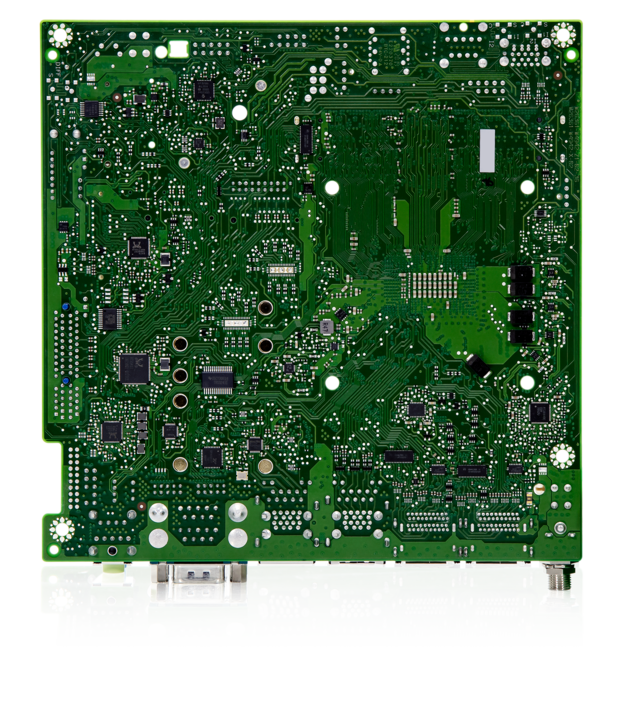

D3713-R2 mITX Kontron

Procesor:

• AMD Ryzen™ Embedded R1305G Dual-Core 1.5GHz (base) / 2.8GHz (boost), 8W TDP default (8-10W configurable TDP)

Grafické rozhraní:

• AMD Radeon™ Vega Graphics @1.0GHz, 3x Compute units
• Up to 3 displays
• 3x DP V.1.4
• 1x embedded DP (eDP V1.4; supporting 4K resolutions)
• 1x Dual-Channel 24bit LVDS

Paměť:

• DDR4 2400 SDRAM
• 2x SO-DIMM socket, max 2x 16GB

Vlastonsti:

• Following max. display combinations are supported: 1x DP + 1x LVDS + 1x eDP // 2x DP + 1x LVDS or eDP // 3x DP
• HD Audio onboard (Realtek ALC256)
• Dual GbE LAN onboard
• 1x RS232/422/485; 3x RS232 (2x by header)
• GPIO (by header)
• AMD integrated TPM V2.0 onboard & socket for optional TPM Module
• Designed for fanless operation
• HW Watchdog onboard
• WideRange internal/external DC Input (8 V - 34 V)

Využití:

• Casino Gaming, Displeje pro zdravotnická zařízení, Thin clients, Průmyslové počítače
