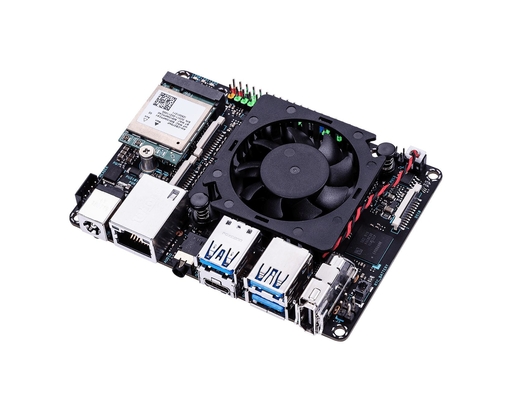

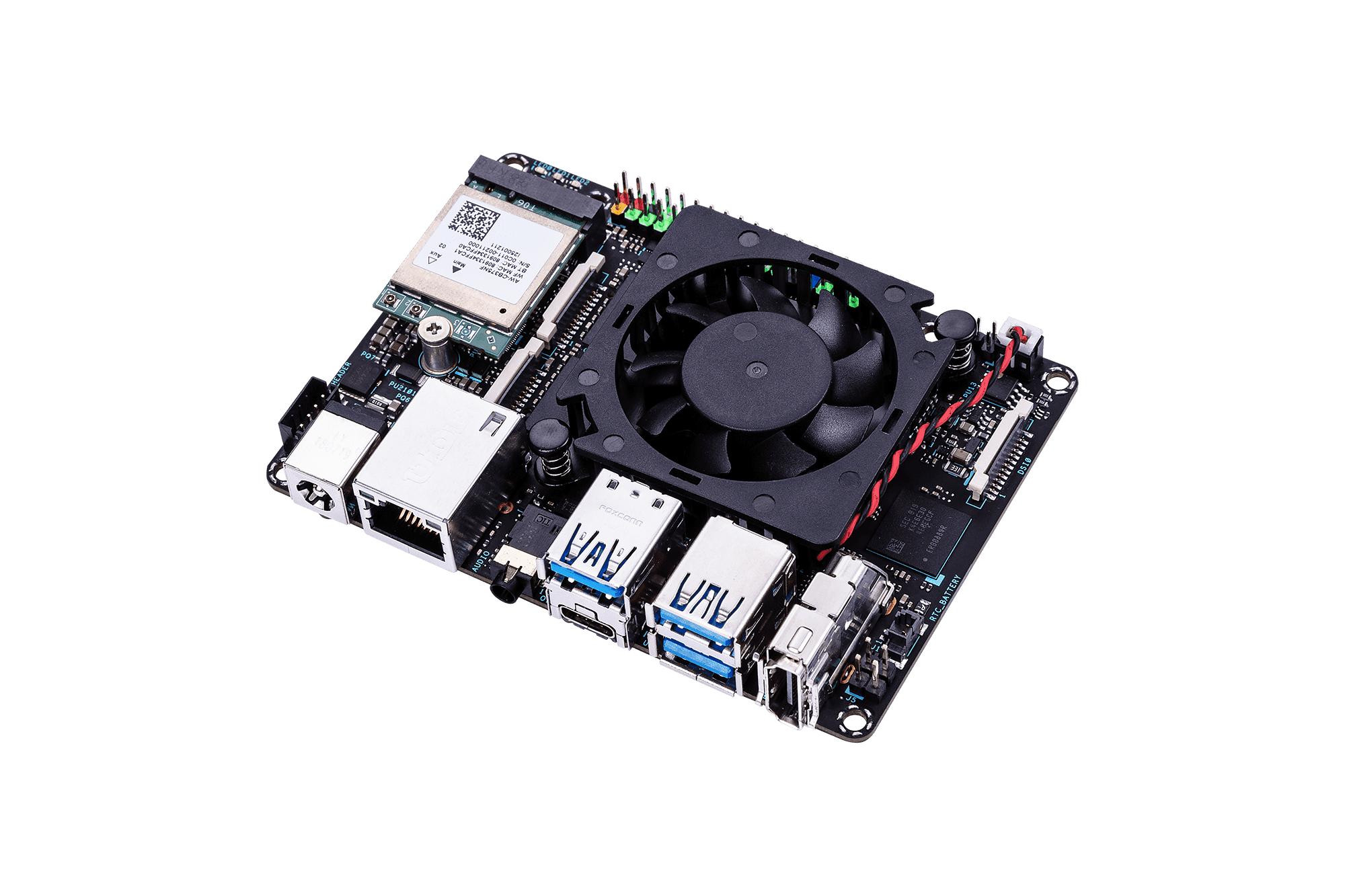

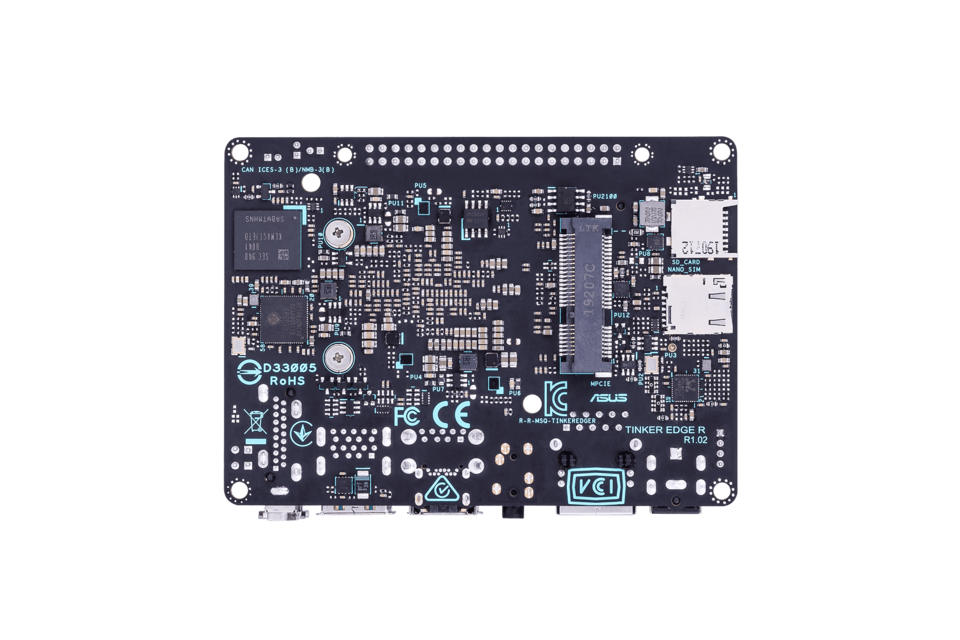

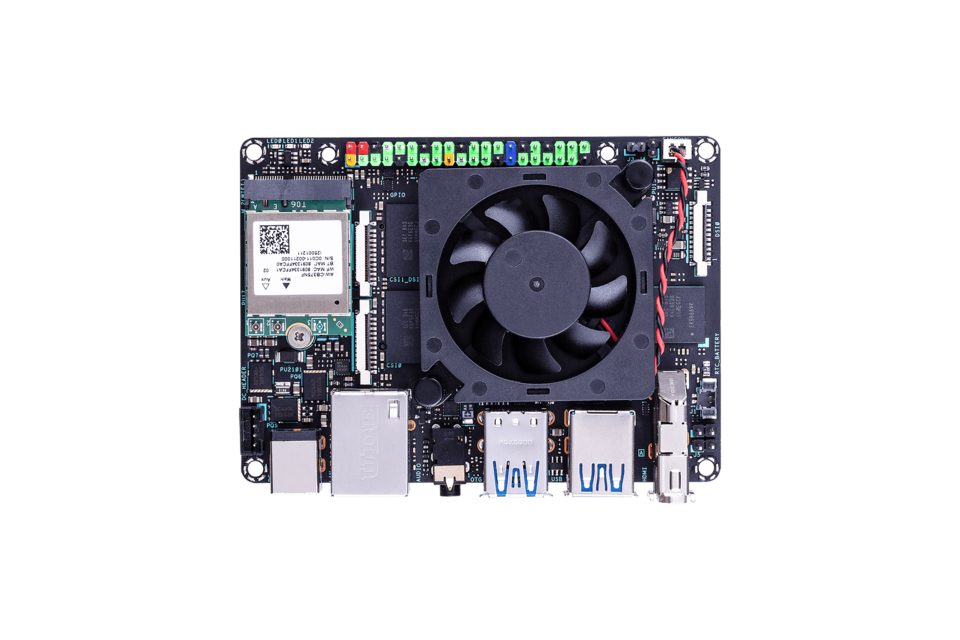

Tinker Edge R

Chipset:

• integrovaný Rockchip

Procesor:

• Rockchip 6-Core RK3399Pro SoC, TDP 7W
• Dual-core Arm® Cortex®-A72 @ 1.8GHz
• Quad-core Arm® Cortex®-A53 @ 1.4GHz
• Integrated Graphics Processor ARM® Mali™-T860 MP4 GPU @ 800 MHz

Paměť:

• 4GB Dual Channel LPDDR4 (system)
• 2GB LPDD3 (NPU)
• 16GB eMMC

• Slot na Micro SD(TF) karty

Vlastnosti:

• 1x M.2 - WiFi 802.11 a/b/g/n/ac wireless & BT 5.0, 2T2R
• Realtek RTL8211F-CG GbE LAN
• 1 x Mini PCIe slot (Full-Length, nano-SIM socket, for 4G/LTE)
• Podpora 3x displej

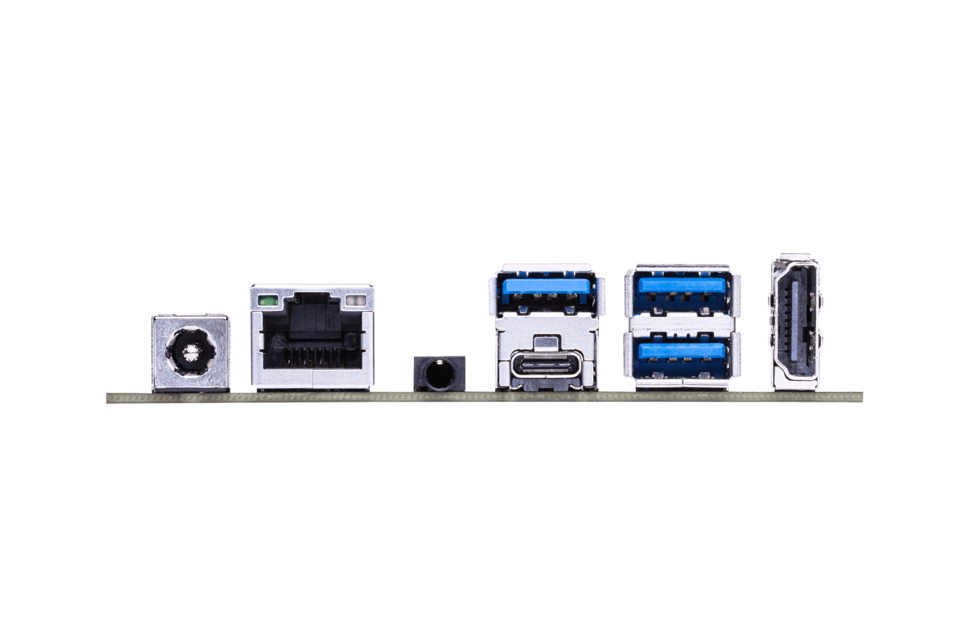

• 3x USB 3.2 Gen1, 1x USB 3.2 Gen1 Type-C OTG (DP Alt Mode), 1x HDMI, 1x 40-pin GPIO header, 1x 22pin MIPI CSI-2 (4 lane), 1x 22-pin MIPI CSI-2/DSI (4 lane)
• 1 x 3.5mm audio jack (with Mic & plug-in detection)
• podpora OS - Linux Debian 9 / Android 9
• 1x 12~19V DC Power Input Jack (5.5/2.5 mm)

Využití:

• Display signage, Machine learning
