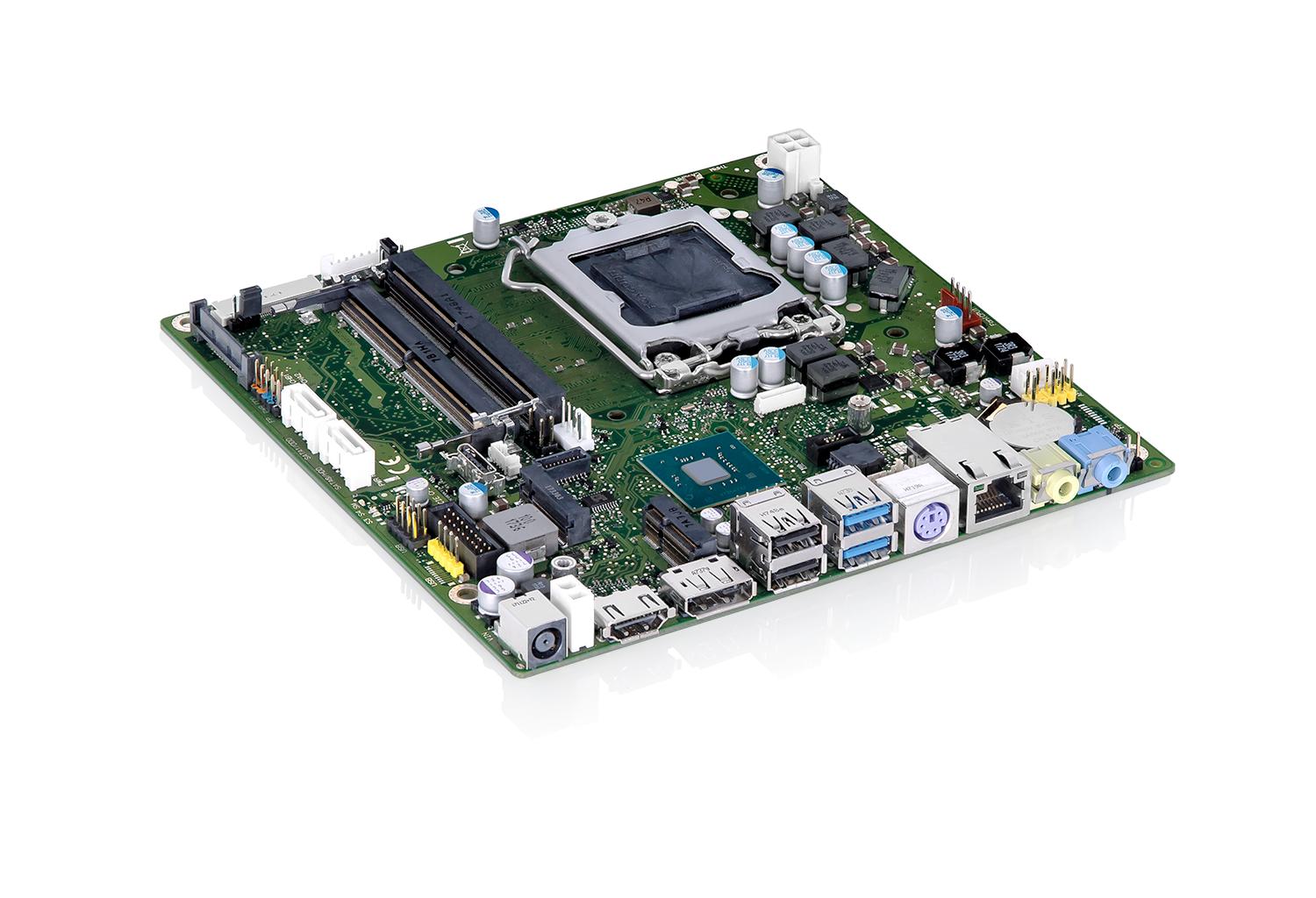

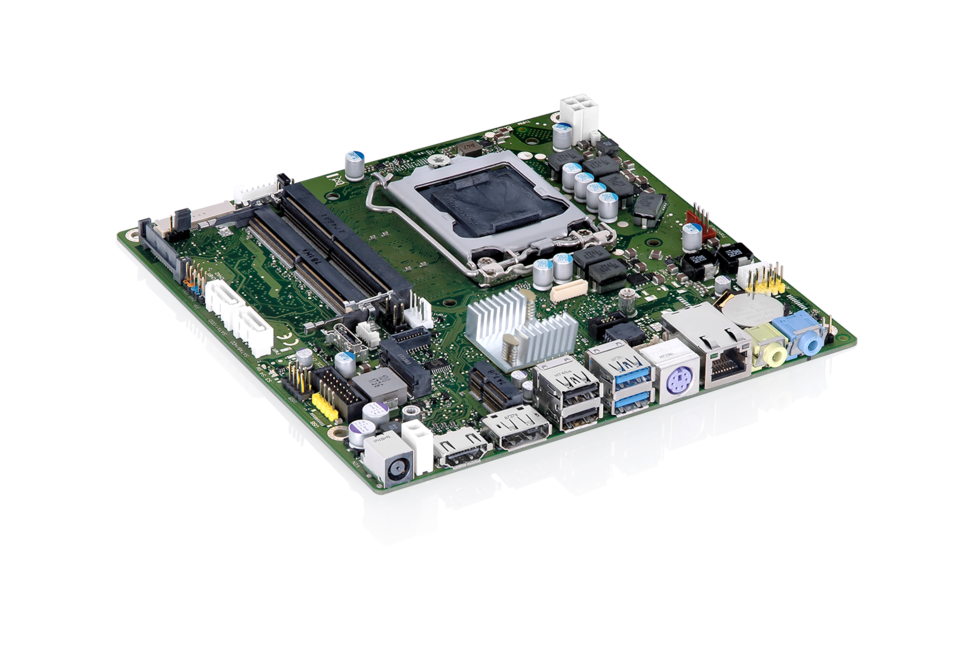

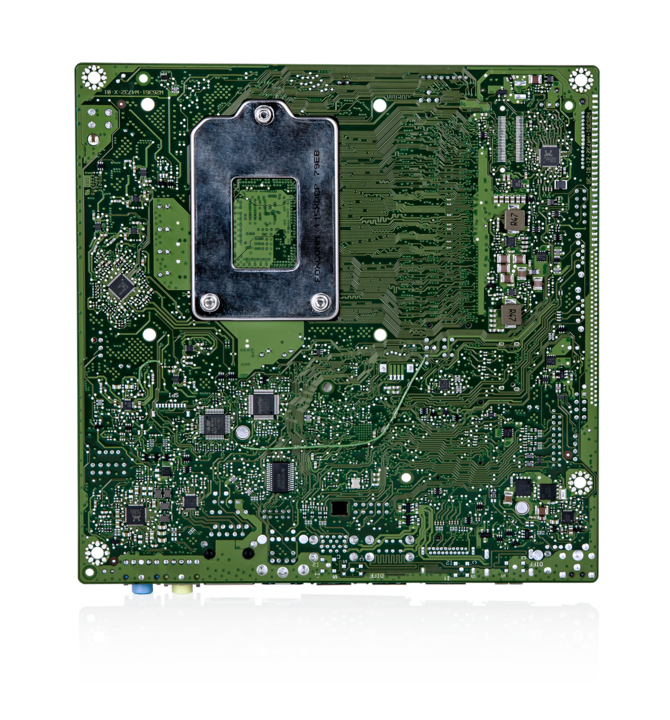

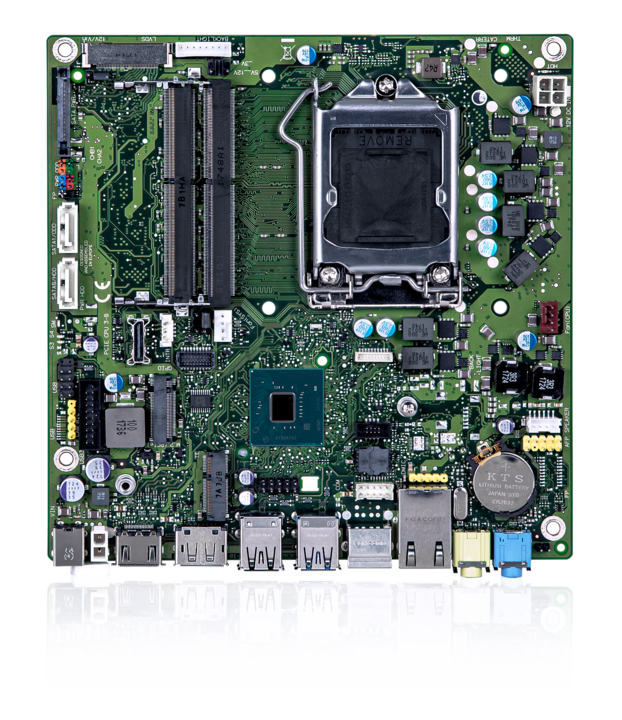

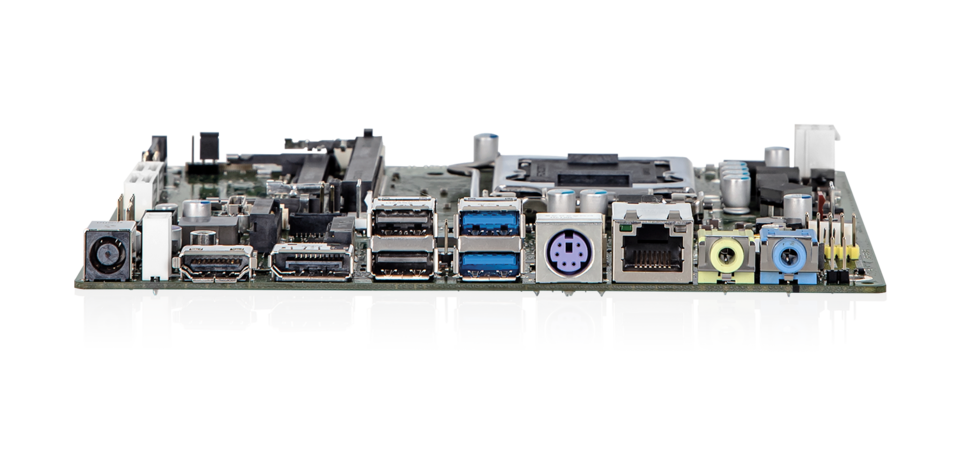

D3674-B-Thin mITX Kontron
kat. č.: S26361-F5120-V168
Popis produktu
Paměť:
- DDR4-2666, Dual Channel
- 2 SO-DIMM sockets, up to 32GB memory
Vlastnosti:
- Intel® HD Graphics (DX12, integrated in processor)
- HDMI V1.4, DP V1.2 and Dual Channel LVDS support
- 8 Bit GPIO & multichannel Audio onboard
- USB 2.0 and USB3.1 Gen1 onboard
- Onboard support for M.2 SSD (PCIe x4 based M.2 2280)
- Onboard support for M.2 WLAN/Bluetooth (M.2 2230)
- Realtek GbE LAN onboard
- Intel integrated TPM V2.0 onboard
- Dual-Range DC Power Supply 12V / 19-24V
- HW Watchdog onboard
Parametry
| Market: | Extended lifecycle |
| Form Factor: | thinminiITX |
| Power Input: | Dual-Range DC Power Supply 12V / 19-24V |
| Processor: | Socket LGA1151 (8th generation) Intel CPU – up to 65W TDP |
| LAN/USB/COM: | Realtek GbE LAN onboard/2x USB 2.0, 2x USB 3.0 |
| Rozměry: | 170x170mm |
| Frekvence: | 2400 Mhz (CL17) / 2666 Mhz (CL19) |
| Provozní teplota: | 0-50 °C |
| Typ paměti: | DDR4 |
| DDR: | SO-DIMM |
